1
Lift to bed

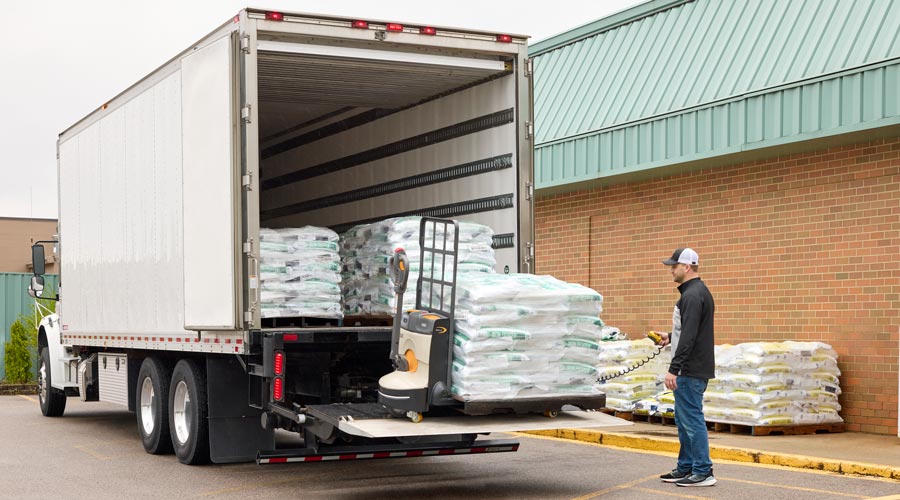

At the dock edge the system raises the pallet to the truck floor height.
Why it exists
One operator. No walking a jack into a dark box.
Hardware shops and merchants lose time and people sending a jack into the cargo body of every lorry. DockSplit keeps the rider outside. The module does the inside work. Offload stays manual — the system holds the pallet until hands are ready.
2
Split
Pins and magnets release. Body stays. Module takes the load.
3
Enter the box
The powered fork module drives the pallet into the cargo body — up to about 6 metres guided.
4
Hold for offload
Module waits. Crew stacks or breaks the pallet by hand. No automatic dumping.
5
Return
Empty module reverses to the dock lip.
6
Reattach
Auto-align, operator confirms, latch and magnets lock. One machine again.
Shock-isolated latch
The join between body and module sits on a shock pack so the dock lip and truck floor do not crack the pins. Same philosophy as the S2 and R2 ride machines — protect the steel and the operator.
- 2,000 kg module rating
- Dual pin + electro-magnetic lock
- 48V 80Ah split lithium pack
- Scissor assist 0–1,200 mm to bed height
